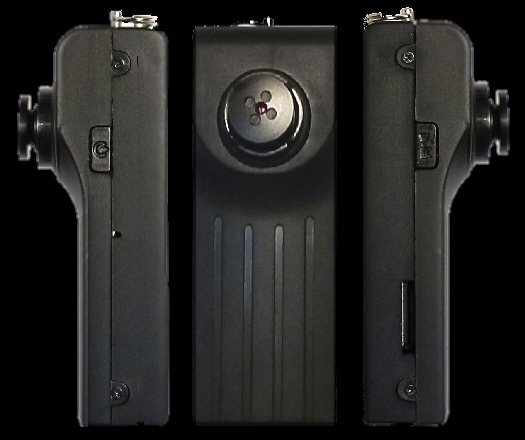

720P or 1080P HD Keychain Camera - HT99A Button Camera

Camera Specs
Basic Operation
Power Button:
Short press starts recording, green led blinks 3 times then off (camera is now recording)
Long press turns camera off at any time.

Mode Button:
Short press starts or pauses video recording
Long press starts Wifi Mode (blue led)
WiFi name: MSL_Retailxxxx
WiFi Password: 1234567890
Camera Drive
When connecting the camera using the USB cable for the first time a box will pop up "installing drivers" which are the USB mass storage device and video camera USB device. A new drive will be listed on your pc, as example: Removable Disk (J;)
To enter camera drive, plug in USB and short press the power button.
Pictures and Videos
Videos: 720P or 1080P .MOV
Pictures: 1280x960 .JPG
60 minutes of video recording = 8Gigs, records 3 minute clips each about 414MB.
All media files will be saved to the "VIDEO/JPG folder on the camera drive. Right click any of the media files you created in the folder for options like Cut, Copy, Paste, Delete. What I do is highlight all media (or edit, select all), cut and paste them to a folder on my pc, this removes them off camera SD card and saves them to pc.
USB takes about 3 hours 30 minutes to fully charge if the battery is completely empty.
When charging the (red light) will remain solid, when fully charged the light will shut off.

This cam can do up to 60 minutes of video on full charge.

Note: There are 2 cables for this camera.
The DATA cable used for charging or transferring data.
  The FPV cable used for RC.

Movie Maker 6 for Win 7
Windows live movie maker that shipped with windows 7 is more of a down graded movie maker 6. For those who want the better movie maker 6 for win7 -64 bit edition you can download it here, download also includes K-lite codec pack 64 bit. See how to: video

PIP Using Movie Maker 6
Make a picture in picture video using RehanFX transitions and effects for Vista movie maker.
See example video:
RehanFx PIP

SD Cards

SD cards range from 2-32 GB. The cards used are the Micro SD/TF/SDHC with storage space 4GB/8GB/16GB/32GB. Tip: TF = TransFlash, SDHC = Secure Digital High Capacity. Your local computer store may sell these cards but you will probably find them cheaper online. The higher the class number (2, 4, 6...) the faster the read/write speed. Transcend, Kinston, and SanDisk are popular brands. Class numbers will be circled, see pic below.

Class is the rate in which data flows to and from the card.
Class 2 = 2MB/second
Class 8 = 8MB/second
Class 10 = 10MB/second
This is the minimum data transfer for each card.

When inserting the SD card the brass pins on card will face towards lez of camera.
To remove or insert SD card push card IN until you hear a "click" sound.

Basic Settings and How They Work here
Original Manual
Original manual that comes with camera.
Last firmware update
Aug 2016
Firmware Installation Software
Ez Firmware Updater
Inside the Hetai Button Camera 1080P
Take a closer look at the internal parts of the Hetai HT99A HD 1080P
Pros / Cons

Pros: Sharp clear audio/video. Uses 5 pin micro USB 2.0, WiFi, battery uses a plug-in type connector for ez replacement.

Cons: Slow white balance response going from dark to light. Charging time long.

This is what the time stamp looks like on the Hetai Button Cam 1080P HD.
The time/date have a clear background located at the top left of each video and bottom right with pictures-
 (if date stamp is used)
